Setting up IQFeed Data in Optuma

Author: Optuma Team Last updated: Aug 31, 2022 08:07

Overview

DTN IQFeed

DTN IQFeed provide realtime and 15 minute delayed data for a number of exchanges, including US equities and commodities, Sydney Futures, London Stock Exchange and forex. For details on setting up an IQFeed account for realtime data in your Optuma charts please watch this video:

IQFeed contact

Trent Smalley, CMT - Business Development Manager:
US Toll Free: 800.475.4755 x8435
US Direct: +1 402.255.8435
trent.smalley@dtn.com

Step-by-Step Guide

This article will take you through the process of setting up Optuma to use real-time data sourced from IQFeed.

Process

  1. Log into Optuma.

  2. Go to the Data menu and select the Configure Data Providers option.

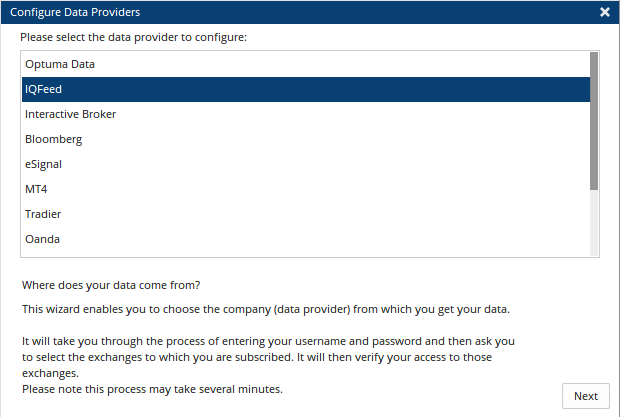

  3. In the window displayed select IQFeed and click Next.

    Note: If IQFeed does not appear in the list of providers it means that the IQFeed Data Client has yet to be installed on your computer. Download and install the client from here, and then restart Optuma.

    Capture

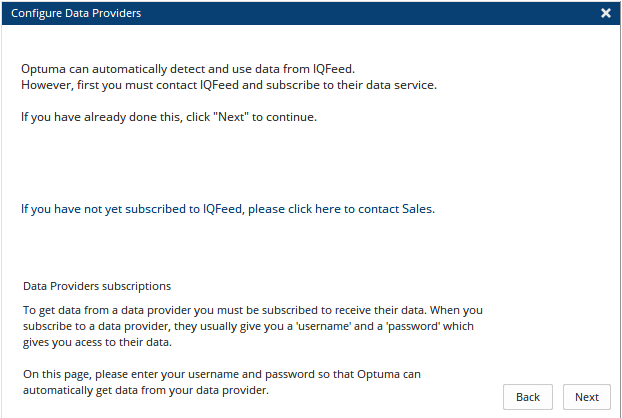

  4. In the window that displays click the Next button.

    Capture

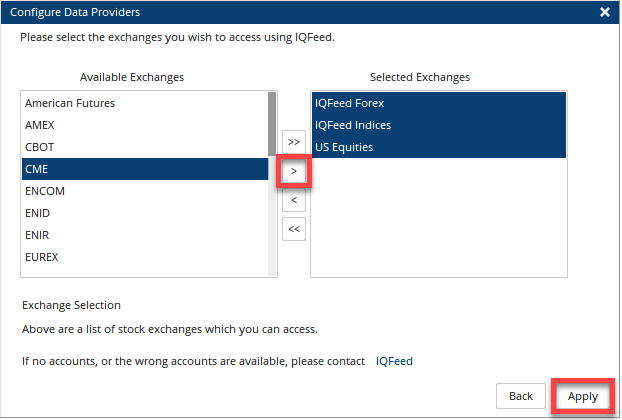

  5. In the window displayed left-click the exchanges you want IQFeed to provide data for, then click the > button.

    Capture

  6. Once the required exchanges have been added to the right-hand side, click the Apply button.

  7. The IQFeed login window will open. Enter your login details and click the Connect button.

    IQFeed 5.PNG

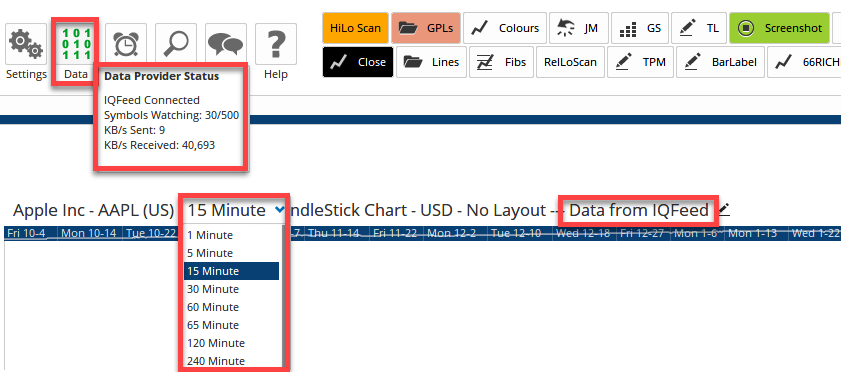

  8. Restart the program to complete the setup process. The Data menu button should now be green and when moused over will confirm the connection and display download stats.

Charts from the selected exchanges will now be using IQFeed data as the source, with intraday time frames available for selection.

Capture

Datafeed settings

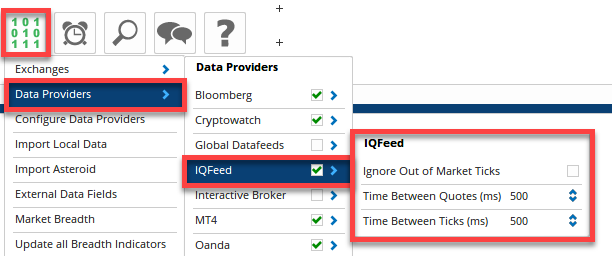

Mousing over the Data > Data Providers > IQFeed menu brings up a window containing specific IQFeed settings:

Capture

Ignoring Out of Market Ticks

Pre- and post-market ticks can be ignored by selecting IQFeed under Data > Data Providers and ticking the box in the pop up window. This will limit the intraday charts to only update between regular market hours (ie 9:30am and 4pm New York time for US equities).

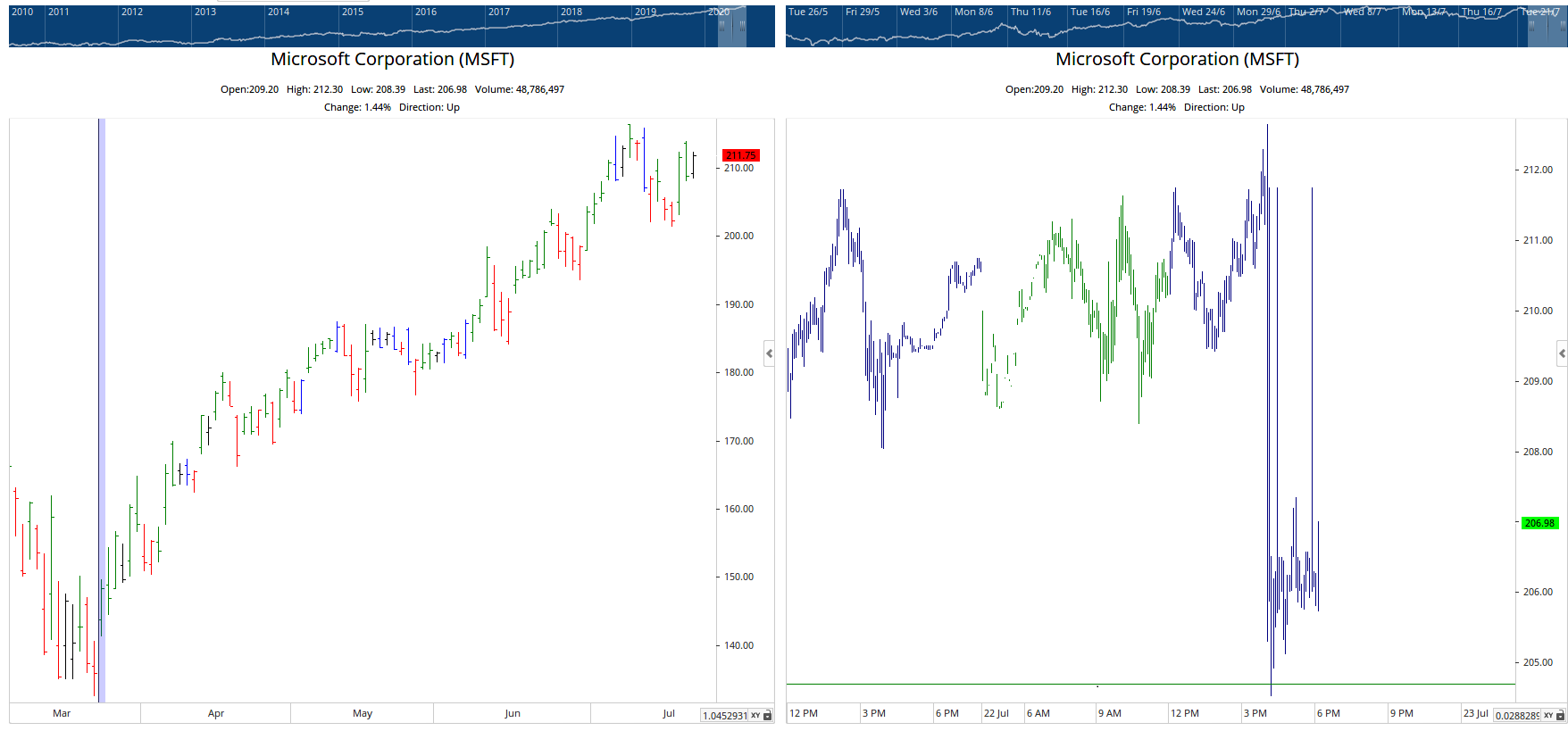

If Out of Market Ticks are not set to be ignored and you have a daily chart tiled alongside an intraday chart, after the session closes you will see new ticks updating the intraday chart (green price scale highlight), however the daily chart will remain static (red price scale highlight).

IQOutofMarketTicks

Time Between Quotes and Ticks

Use these settings to conserve system resources when using large watchlists and workbooks. This setting (500ms by default) will update charts, tools, and watchlists every half a second. Increase these values to reduce your system’s processing requirements and improve performance.

Troubleshooting

If you are encountering problems with the IQFeed connection (Dropouts, Delays, Queued Data, Slow Response) try the following processes to resolve the issue:

  • Windows Defender:
  • Windows Security (Real Time):
  • Moving IQFeed Log File:

If you continue to encounter issues please contact our support team: https://www.optuma.com/contact/
