Stacked Studies

Author: Optuma Team Last updated: Sep 11, 2020 01:40

From Optuma 1.6 it is possible to stack the studies below the price chart. Previously if you had a number of studies on a chart - such as RSI, Volume, or Relative Index Comparison - then they would take up valuable screen space, and it was only possible to hide them from view via the Structure Panel. By enabling the Stack Studies option in the chart Properties they will now collapse into one view, with a tab for each study.

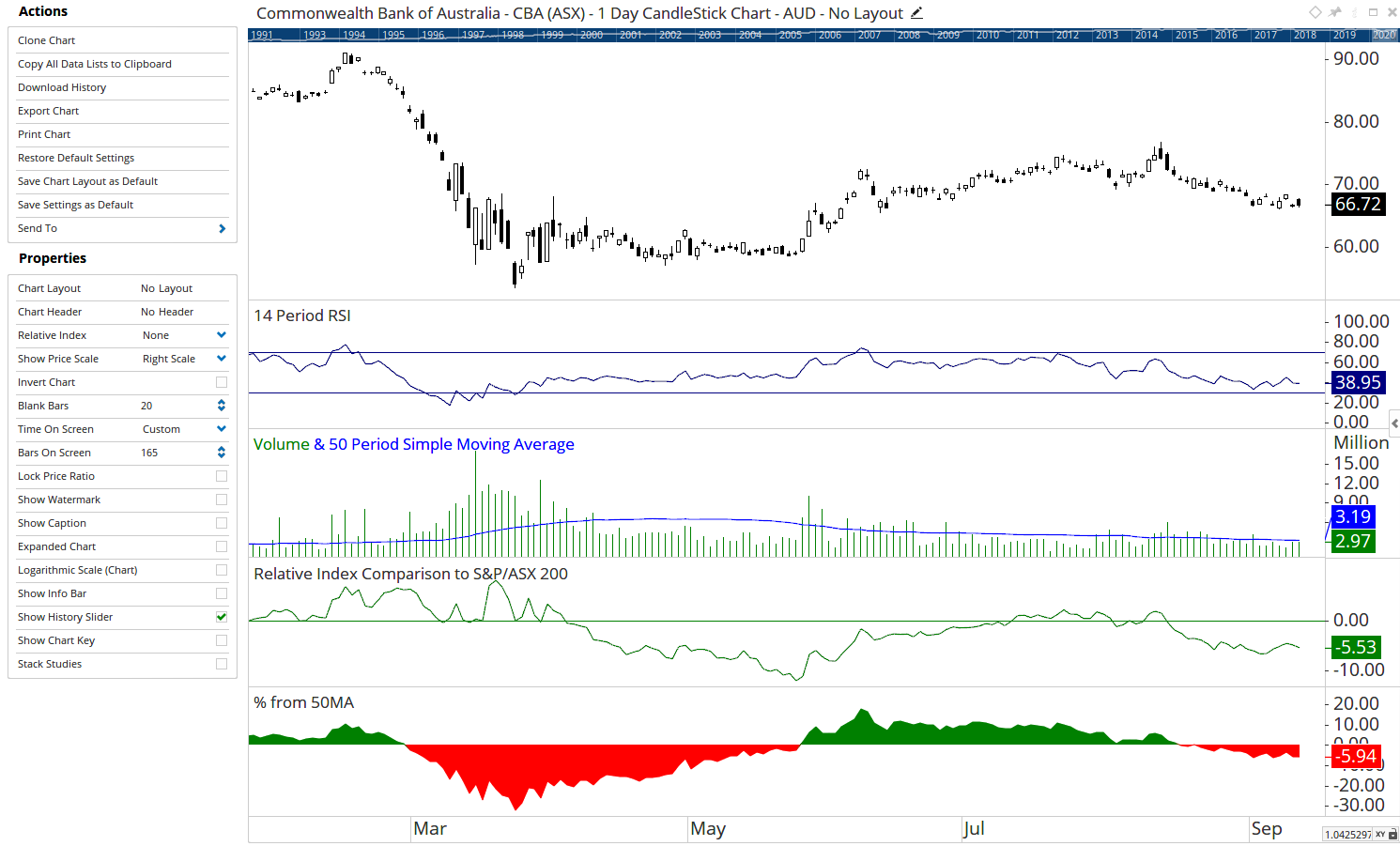

Here’s how it would look before, with four studies below the chart:

Capture

With Stack Studies enabled each one is accessible by clicking on the tab, or on the arrows on the right-hand side:

Capture
