Geometric Square Angle
Overview
The Geometric Square Angle is similar to the Geometric Polygon tool. It draws on any angle, and offers geometric actions to flip and duplicate from a side of the square.

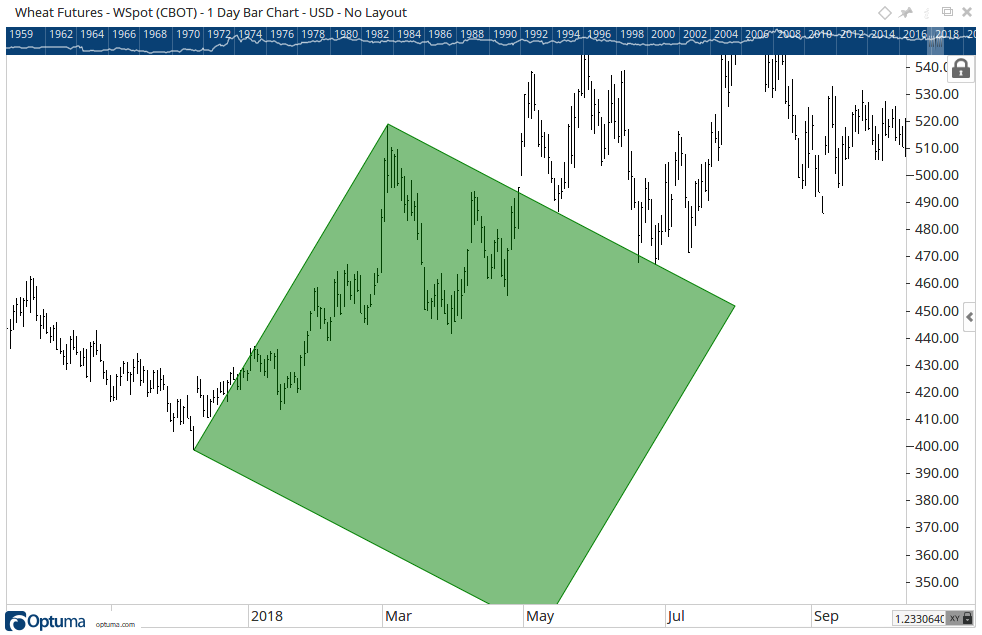

To add the tool to your chart, select the tool from the Price tool group, and left-click on the first bar you want to calculate the tool from. Next, left-click on the bar where you want to calculate the tool to. Optuma will then draw the tool using the default settings.
Actions & Properties

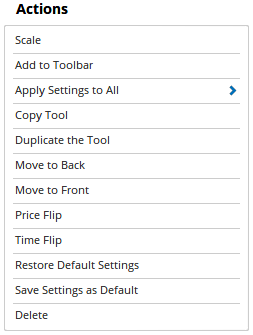

Actions
Scale: When selected you can nominate the Scale value to use. For example, if you use a scale of 2 then the tool will double in size.
Add to Toolbar: Adds the selected tool to your custom toolbar.
Apply Settings to All: When multiple Geometric Square Angle tools have been applied to a chart, page or workbook, this action can be used to apply the settings of the one selected to other instances of the tool. This is a great time saver if an adjustment is made to the tool - such as line colour - as this allows all the other Geometric Square Angle tools in the chart, page or entire workbook to be updated instantly.
Copy Tool: Allows you to copy the selected tool, which can then be pasted onto a different chart window.
Duplicate the Tool: Allows you to create a duplicate of the tool.
Move to Back: If the tool is displaying in front of other tools or indicators clicking this action will move the tool view to the background.
Move to Front: If the tool is displaying behind other tools or indicators on the chart, clicking this action will bring the tool to the forefront.
Price Flip: Allows you to create a duplicate of the tool along the price axis.
Time Flip: Allows you to create a duplicate of the tool along the time axis.
Restore Default Settings: Click this action if you have adjusted the default settings of the tool, and wish to return to the standard properties originally installed with Optuma.
Save Settings as Default: If you have adjusted any of the tool’s properties (colour, for example) you can save the adjustments as your new default setting. Each time you apply a new Geometric Square Angle to a chart, the tool will display using the new settings.
Delete: Deletes the tool from the chart.
Properties
Tool Name: Allows you to adjust the name of the tool, as it’s displayed in the Structure Panel.
Line Style: Allows you to adjust the type of line displayed. There are 8 options available: Solid, Dots, Dash, Dash Dots, Long Dash, Long Dash Dot, Long Dash Dot Dot, Stippled.
Line Width: Allows you to adjust the width of the line for the tool. Moving the slider bar to the right increases the thickness of the line.
Line Colour: Allows you to adjust the colour of the line. Clicking on the drop down arrow will display a colour swatch. Locate the desired colour and left-click it once to select it.
Show Fill: When selected the tool will be shaded.
Fill Colour: Allows you to alter the Fill Colour of the tool. Clicking on the drop down arrow will display a colour swatch. Locate the desired colour and left-click it once to select it.
Fill Transparency: Use this slider bar to adjust the transparency of the fill for the tool. Moving the slider to the left will increase the transparency.
Tool Transparency: Use this slider bar to adjust the transparency of the tool. Moving the slider to the left will increase the transparency of the tool.
Visible: Un-tick this checkbox to hide the tool from the chart.
