Triad
Overview

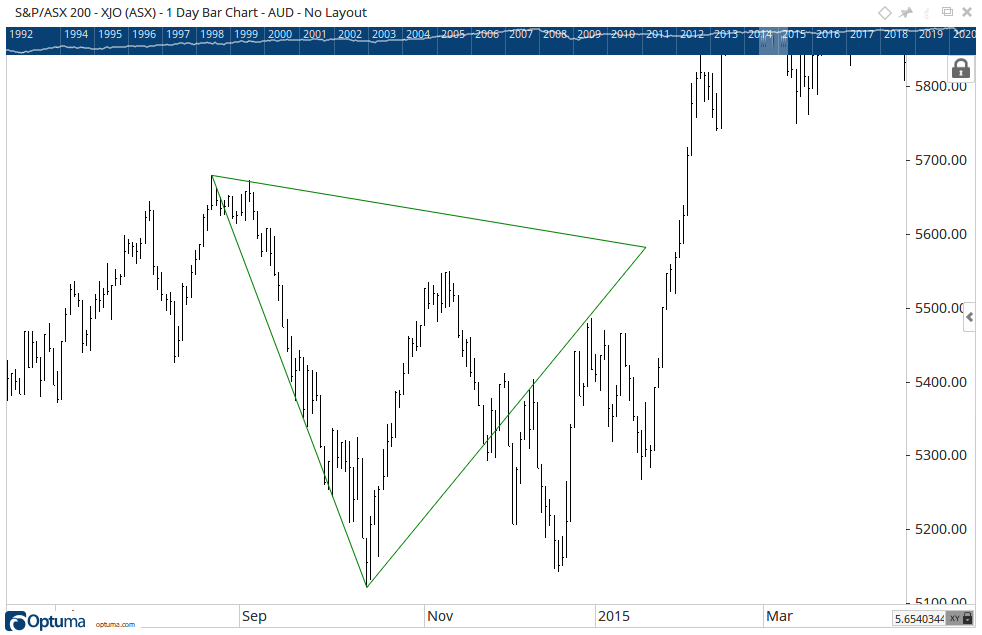

The Triad tool is made up of three points. As it relates to trading, two points of the Triad are used to identify the two extreme points of a range in price and time. The two points of the range are then used to plot one side of an equilateral triangle with angles of 60 degrees each. Reversals often take place when the market reaches the extreme right tip of the triangle.
To add the tool to your chart, select the tool from the Geometric tool group, and left-click on the first bar you want to calculate the tool from. Next, left-click on the bar where you want to calculate the tool to. Optuma will then draw the tool using the default settings.
Actions & Properties
Actions
Scale: When selected you can nominate the Scale value to use. For example, if you use a scale of 2 then the tool will double in size.
Add to Toolbar: Adds the selected tool to your custom toolbar.
Apply Settings to All: When multiple Triad tools have been applied to a chart, page or workbook, this action can be used to apply the settings of the one selected to other instances of the tool. This is a great time saver if an adjustment is made to the tool - such as line colour - as this allows all the other Triad tools in the chart, page or entire workbook to be updated instantly.
Copy Tool: Allows you to copy the selected tool, which can then be pasted onto a different chart window.
Move to Back: If the tool is displaying in front of other tools or indicators clicking this action will move the tool view to the background.
Move to Front: If the tool is displaying behind other tools or indicators on the chart, clicking this action will bring the tool to the forefront.
Restore Default Settings: Click this action if you have adjusted the default settings of the tool, and wish to return to the standard properties originally installed with Optuma.
Save Settings as Default: If you have adjusted any of the tool’s properties (colour, for example) you can save the adjustments as your new default setting. Each time you apply a new Triad to a chart, the tool will display using the new settings.
Delete: Deletes the tool from the chart.
Properties
Tool Name: Allows you to change the name of the tool, as displayed in the Structure Panel.
Reflect Triangles: When selected the original Triad is duplicated in all directions on your chart.
Line Style: This option expands to show the following:
- Line Style - The Line Style property allows you to adjust the type of line displayed. There are 8 options available: Solid, Dots, Dash, Dash Dots, Long Dash, Long Dash Dot, Long Dash Dot Dot, Stippled.
- Line Width - Allows you to adjust the width of the line. Moving the slider bar to the right increases the thickness of the line.
- Line Colour - Allows you to select the colour of the line. Clicking on the drop down arrow will display a colour swatch. Locate the desired colour and left-click it once to select it.
Tool Transparency: Use this slider bar to adjust the transparency of the tool. Moving the slider to the left will increase the transparency of the tool.
Visible: Un-tick this checkbox to hide the tool from the chart.
