Triangle
Overview
This tool allows you to draw a triangle on your chart. This can be used for geometric and cycles based analysis on various chart types.

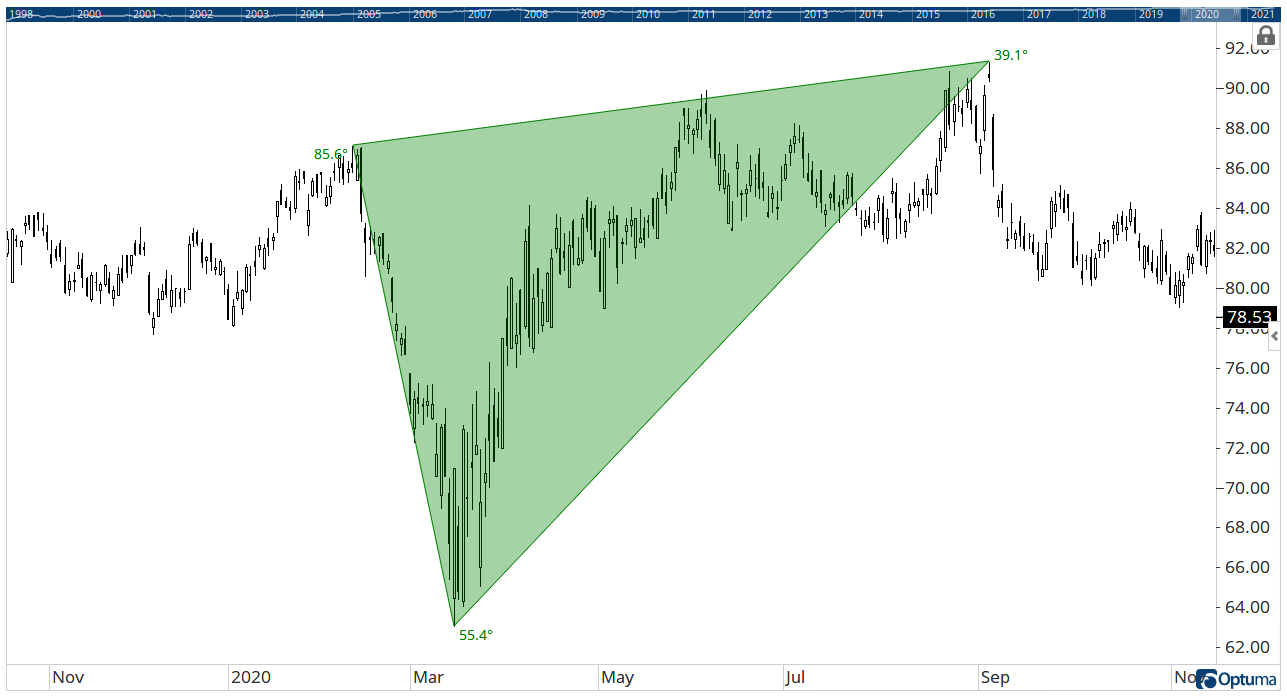

To add the tool to your chart, select the tool from the Geometric tool group, and left-click on the first bar you want to calculate the tool from. Next, left-click on the second and the third points on the chart. Optuma will then draw the tool using the default settings.
Actions & Properties

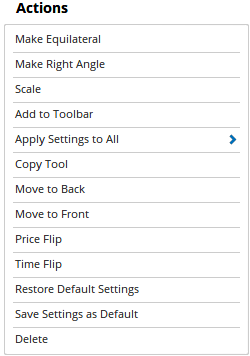

Actions
Make Equilateral: This action will adjust the triangle to display as an Equilateral triangle.
Make Right Angle: This action will adjust the triangle to display as a Right Angled triangle.
Scale: When selected you can nominate the Scale value to use. For example, if you use a scale of 2 then the tool will double in size.
Add to Toolbar: Adds the selected tool to your custom toolbar.
Apply Settings to All: When multiple Triangle tools have been applied to a chart, page or workbook, this action can be used to apply the settings of the one selected to other instances of the tool. This is a great time saver if an adjustment is made to the tool - such as line colour - as this allows all the other Triangle tools in the chart, page or entire workbook to be updated instantly.
Copy Tool: Allows you to copy the selected tool, which can then be pasted onto a different chart window.
Move to Back: If the tool is displaying in front of other tools or indicators clicking this action will move the tool view to the background.
Move to Front: If the tool is displaying behind other tools or indicators on the chart, clicking this action will bring the tool to the forefront.
Price Flip: Allows you to create a duplicate of the tool along the price axis.
Time Flip: Allows you to create a duplicate of the tool along the time axis.
Restore Default Settings: Click this action if you have adjusted the default settings of the tool, and wish to return to the standard properties originally installed with Optuma.
Save Settings as Default: If you have adjusted any of the tool’s properties (colour, for example) you can save the adjustments as your new default setting. Each time you apply a new Triangle to a chart, the tool will display using the new settings.
Delete: Deletes the tool from the chart.

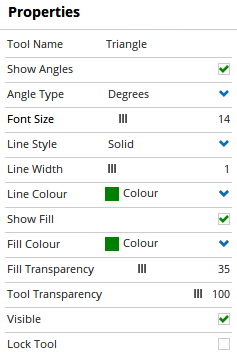

Properties
Tool Name: Allows you to adjust the name of the tool, as it’s displayed in the Structure Panel.
Tool Name: Allows you to adjust the name of the tool, as it’s displayed in the Structure Panel.
Show Angles: Tick the box to show the angles on the tool.
Angle Type: Choose to display the angles as degrees or radians.
Font Size: Adjust the size of the angle labels.
Line Style: The Line Style property allows you to adjust the type of the triangle lines displayed. There are 8 options available: Solid, Dots, Dash, Dash Dots, Long Dash, Long Dash Dot, Long Dash Dot Dot, Stippled.
Line Width: Allows you to adjust the width of the triangle lines. Moving the slider bar to the right increases the thickness of the line.
Line Colour: Allows you to select the colour of the triangle lines. Clicking on the drop down arrow will display a colour swatch. Locate the desired colour and left-click it once to select it.
Fill Colour: Allows you to select the fill colour of the triangle. Clicking on the drop down arrow will display a colour swatch. Locate the desired colour and left-click it once to select it.
Fill Transparency: Use this slider bar to adjust the transparency of the triangle fill colour. Moving the slider to the left will increase the transparency.
Tool Transparency: Use this slider bar to adjust the transparency of the tool. Moving the slider to the left will increase the transparency of the tool.
Visible: Un-tick this checkbox to hide the tool from the chart.
Lock Tool: When selected, any changes to the tool will be prevented from being made.
